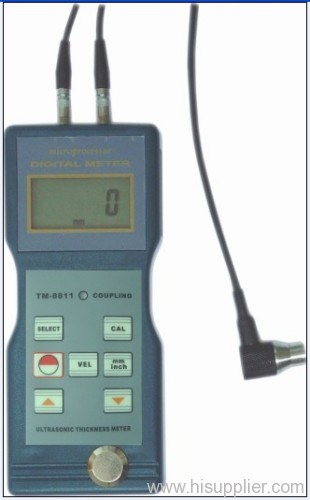

ULTRASONIC THICKNESS GAUGE TM8811 manufacturer from China Guangzhou Landtek Instruments Co. Ltd

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TM8811

Packing: carton

Means of Transport: express

Delivery Date: with 5 days

Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuildin

Application:

Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

Model: TM8811

Measuring range (metric/imperial): 1.2-200mm,0.06-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducerF

Calibration block: included

Resolution: 0.1mm

Accuracy: ±(0.5%n+0.1)

Power supply: 4x1.5V AA(UM-3)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 160x68x32mm

weight: 208g (not including battery)

Optional Accessories:
6MФ6mm thin Material probe:Measuring range(steel): 1.0 50.0mm Operating temperature: -10~+60℃

5MФ12high temperature probe: Measuring range(steel): 1.0~225.0mm(normal temperature) Measuring range(steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300℃
